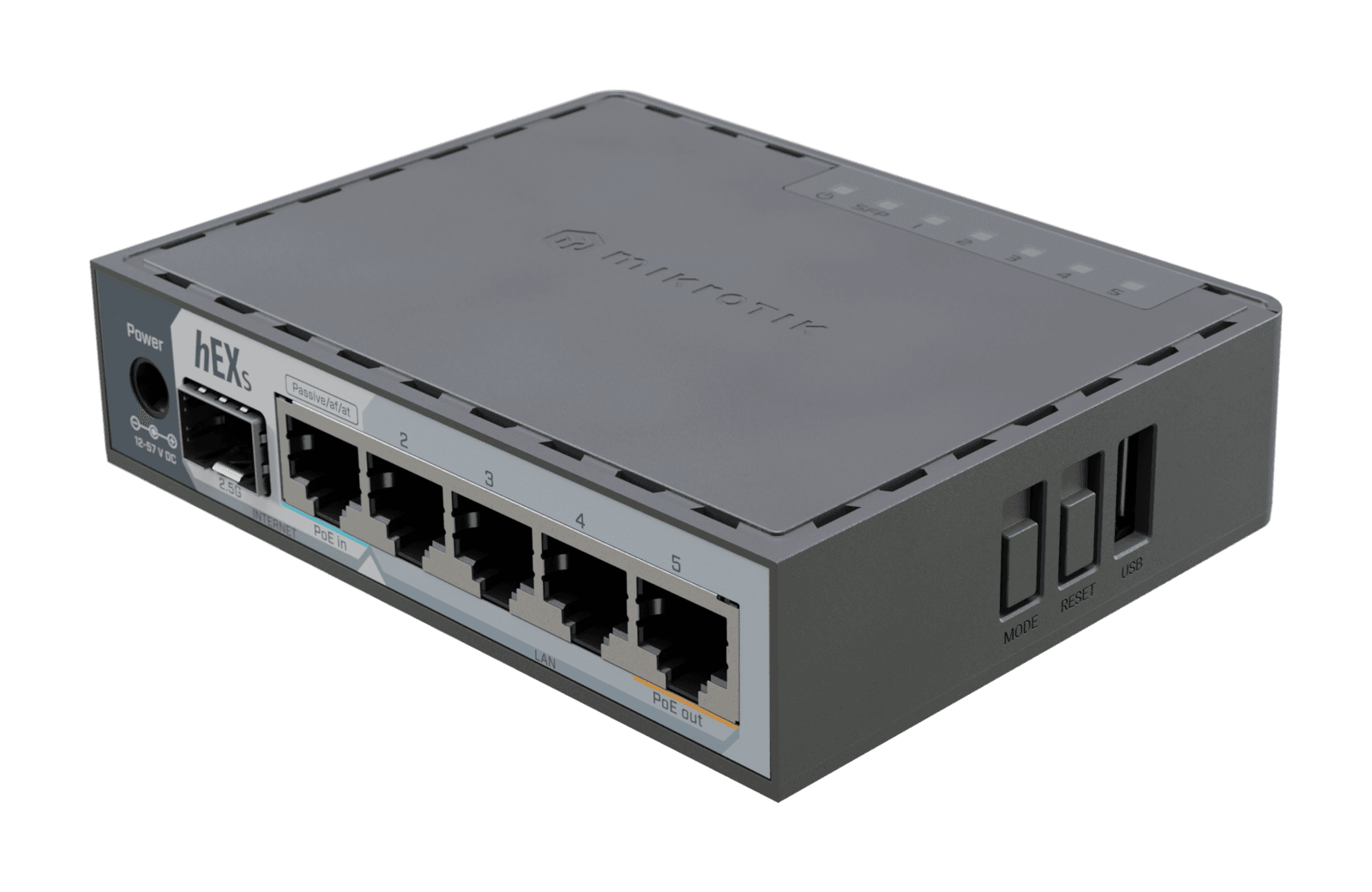

MikroTik hEX S (2025) image 1

Routers

MikroTik hEX S (2025)

Compact wired router with five Gigabit ports, a 2.5G SFP cage and PoE-out.

  • Five Gigabit Ethernet ports and one SFP cage supporting 2.5G modules
  • Passive PoE-out on Ether5, up to 57 V
  • Dual-core EN7562CT CPU at 950 MHz, 512 MB RAM, 128 MB NAND
  • USB 3.0 port, 802.3af/at PoE-in, RouterOS v7
Product page

Technical details

Specifications

37 specification rows

ArchitectureARM 32bit
CPUEN7562CT
CPU core count2
CPU nominal frequency950 MHz
CPU Threads count2
Switch chip modelEN7523
RouterOS license4
Operating SystemRouterOS v7
Size of RAM512 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C

Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max power consumption23 W
Max power consumption without attachments5 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage18-57 V

PoE-out portsEther5
PoE outPassive PoE up to 57V
Low voltage PoE-Out current limit0.5 A
High voltage PoE-Out current limit0.5 A

10/100/1000 Ethernet ports5
Number of 1G Ethernet ports with PoE-out1

SFP ports1 (2.5G supported)

Number of USB ports1
USB Power ResetYes
USB slot typeUSB 3.0 type A
Max USB current (A)1

CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes

CertificationCE, EAC, ROHS
IP20
