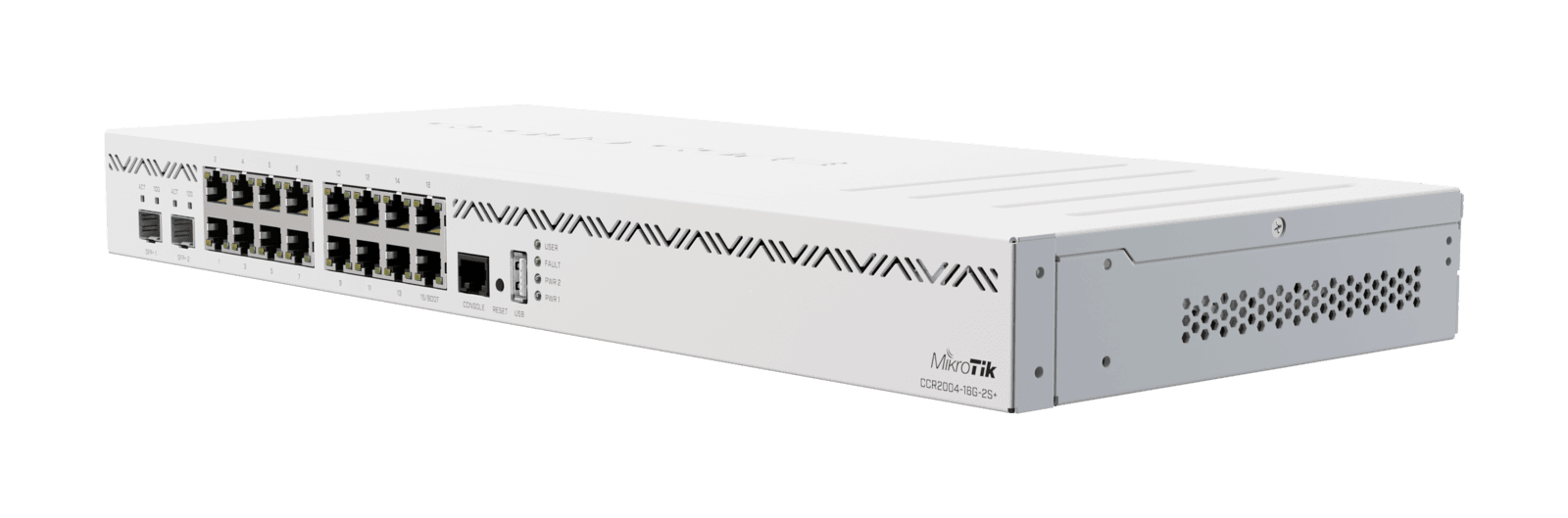

MikroTik CCR2004-16G-2S+ image 1
Routers
MikroTik CCR2004-16G-2S+
1U cloud core router with 16 Gigabit ports and two 10G SFP+ cages.
- Sixteen Gigabit Ethernet ports and two 10G SFP+ cages
- Quad-core AL32400 CPU at 1.7 GHz, 4 GB RAM

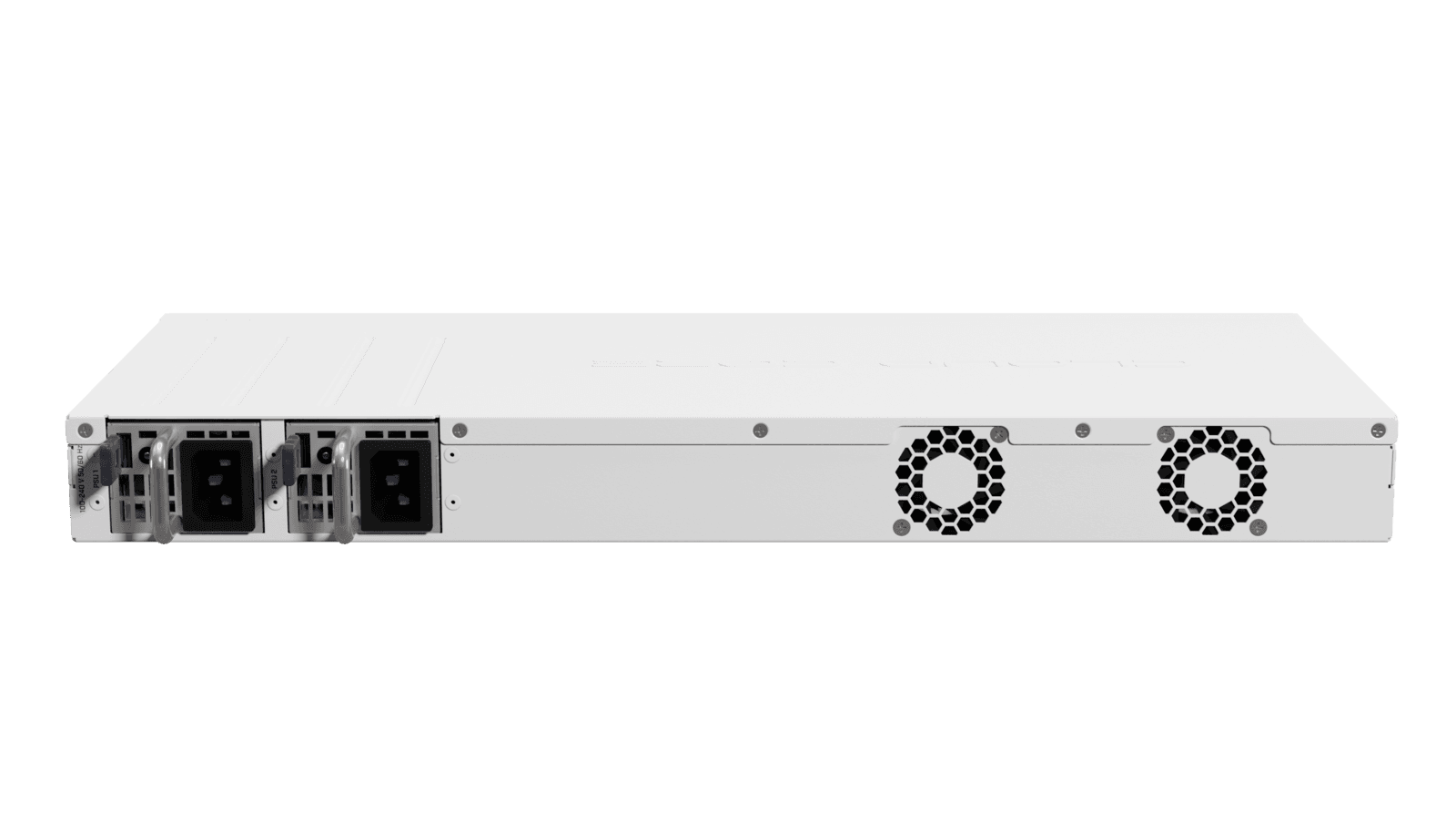

- Dual redundant AC power supplies and two cooling fans
- RouterOS v7 with a Level 6 licence, 1U rackmount chassis
Technical details
Specifications
30 specification rows
ArchitectureARM 64bit
CPUAL32400
CPU core count4
CPU nominal frequency1700 MHz
CPU Threads count4
Switch chip model88E6191X
Dimensions443 x 210 x 44 mm
RouterOS license6
Operating SystemRouterOS v7
Size of RAM4 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
Number of AC inputs2
AC input range100-240
Number of PSU slots2
Frequency (Hz)50-60
Max power consumption48 W
Max power consumption without attachments35 W
Cooling type2 fans
10/100/1000 Ethernet ports16
SFP+ ports2
Serial console portRJ45
Number of USB ports1
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes
CertificationCE, EAC, ROHS
IPIP20
