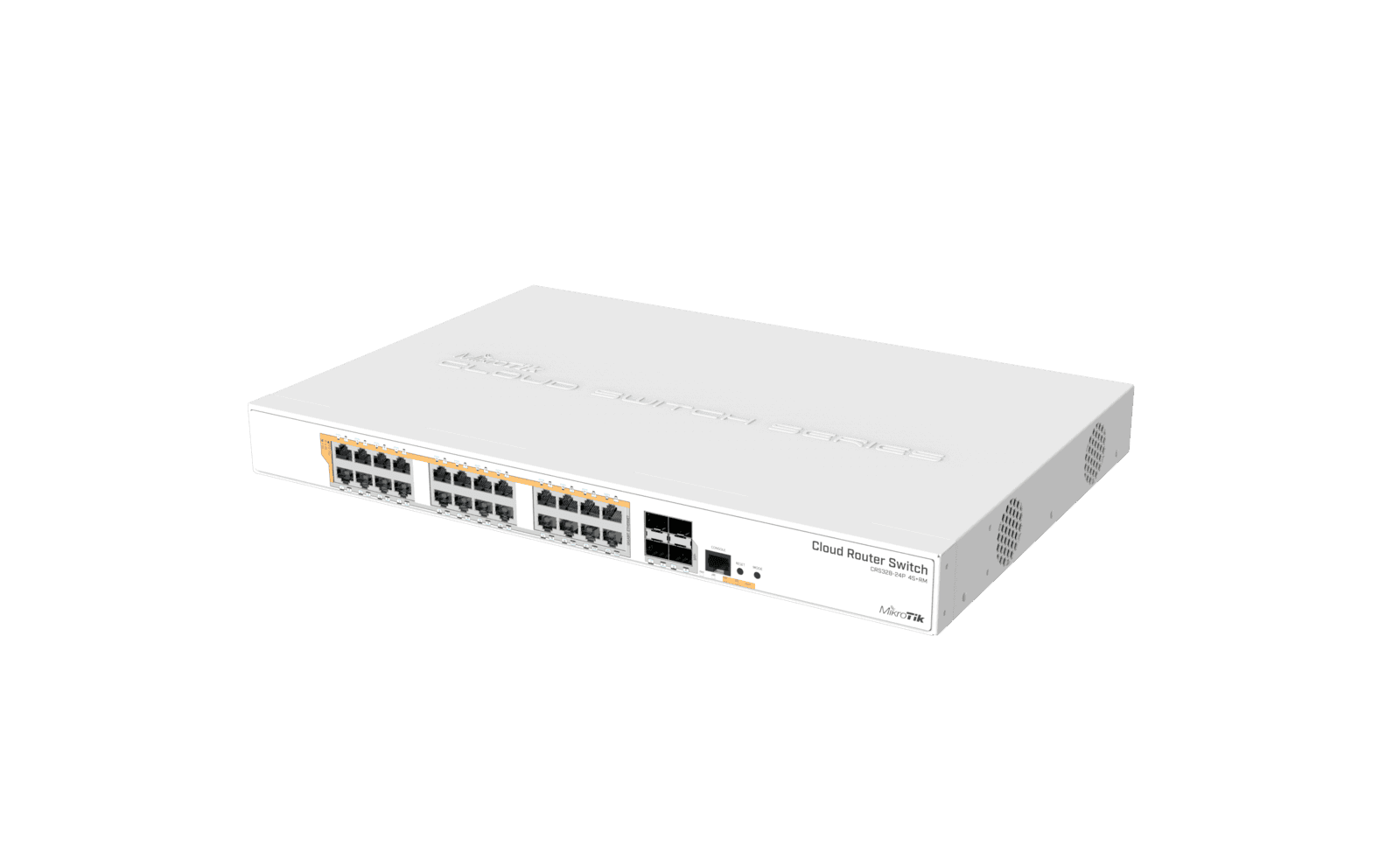

MikroTik CRS328-24P-4S+RM image 1

Switches

MikroTik CRS328-24P-4S+RM

24-port Gigabit PoE+ switch with four 10G SFP+ ports and a 500 W power supply.

  • 24 Gigabit Ethernet ports with 802.3af/at PoE-out
  • Four 10G SFP+ cages
  • 500 W total PoE budget, 1U rackmount chassis with two fans
  • Dual boot RouterOS or SwOS, 512 MB RAM
Product page

Technical details

Specifications

34 specification rows

ArchitectureARM 32bit
CPU98DX3236
CPU core count1
CPU nominal frequency800 MHz
Switch chip model98DX3236
Dimensions443 x 300 x 44 mm
RouterOS license5
Operating SystemRouterOS / SwitchOS
Size of RAM512 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C

Number of AC inputs1
AC input range100-240
Number of PSU slots1
Max power consumption494 W
Max power consumption without attachments44 W
Cooling type2 fans

PoE-out portsEther1-Ether24
PoE out802.3af/at
Low voltage PoE-Out current limit1000 mA
High voltage PoE-Out current limit450 mA
Max total out (A)20 A

10/100/1000 Ethernet ports24

SFP+ ports4

Serial console portRJ45

CPU temperature monitorYes
Current MonitorYes
PCB temperature monitorYes
Voltage MonitorYes
Mode buttonYes

CertificationCE, EAC, ROHS
IPIP00
