Cisco CBS350-48P-4G-EU image 1
Switches

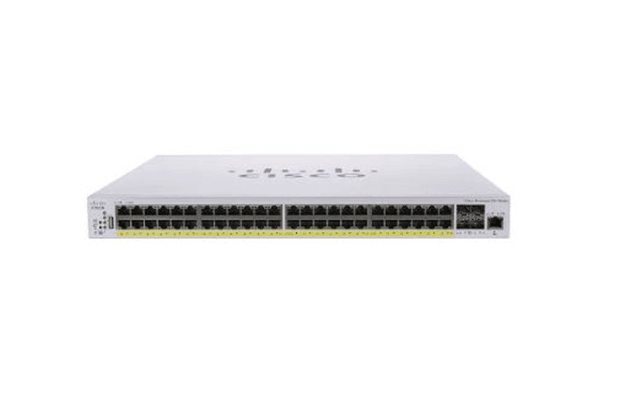

Cisco CBS350-48P-4G-EU
48-port Gigabit PoE+ managed switch with four SFP uplinks and a 370 W PoE budget.
- 48 x Gigabit Ethernet PoE+ ports plus 4 x Gigabit SFP uplinks
- 370 W PoE budget, 802.3af/at on all 48 access ports
- 104 Gbps switching capacity, 77.38 Mpps forwarding rate
- Limited lifetime warranty with next-business-day replacement
Technical details
Specifications
24 specification rows
ModelCBS350-48P-4G-EU
Total system ports52 x Gigabit Ethernet (48 x PoE+ RJ-45, 4 x SFP)
PoE budget370 W dedicated to PoE
Switching capacity104 Gbps
Forwarding rate77.38 Mpps (64-byte packets)
Dimensions (W x D x H)445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in)
Weight5.43 kg (11.97 lb)
Cooling1 fan, 37.3 dBA at 25°C
MTBF at 25°C856,329 hours
WarrantyLimited lifetime with next business day advance replacement (where available)
Switching
VLANsUp to 4,094 simultaneous VLANs
Spanning TreeSTP, RSTP, MSTP, PVST+ and Rapid PVST+
Link aggregationLACP and static link aggregation
MulticastIGMP snooping with querier
IPv4 routingWire-speed routing, up to 990 static routes and 128 IP interfaces
IPv6 routingWire-speed IPv6 routing
Dynamic routingRIPv2
Policy-based routingIPv4 and IPv6 ACL-based next-hop selection
Power
Power consumption110 V: 60.77 W; 220 V: 59.73 W
Power consumption with PoE110 V: 451.95 W; 220 V: 445.85 W
Heat dissipation1,542.12 BTU/hr
Operating temperature-5°C to 50°C (23°F to 122°F)
Storage temperature-25°C to 70°C (-13°F to 158°F)
Operating humidity10% to 90%, relative, noncondensing
