Monachi

MikroTik CRS326-24G-2S+RM image 1

Switches

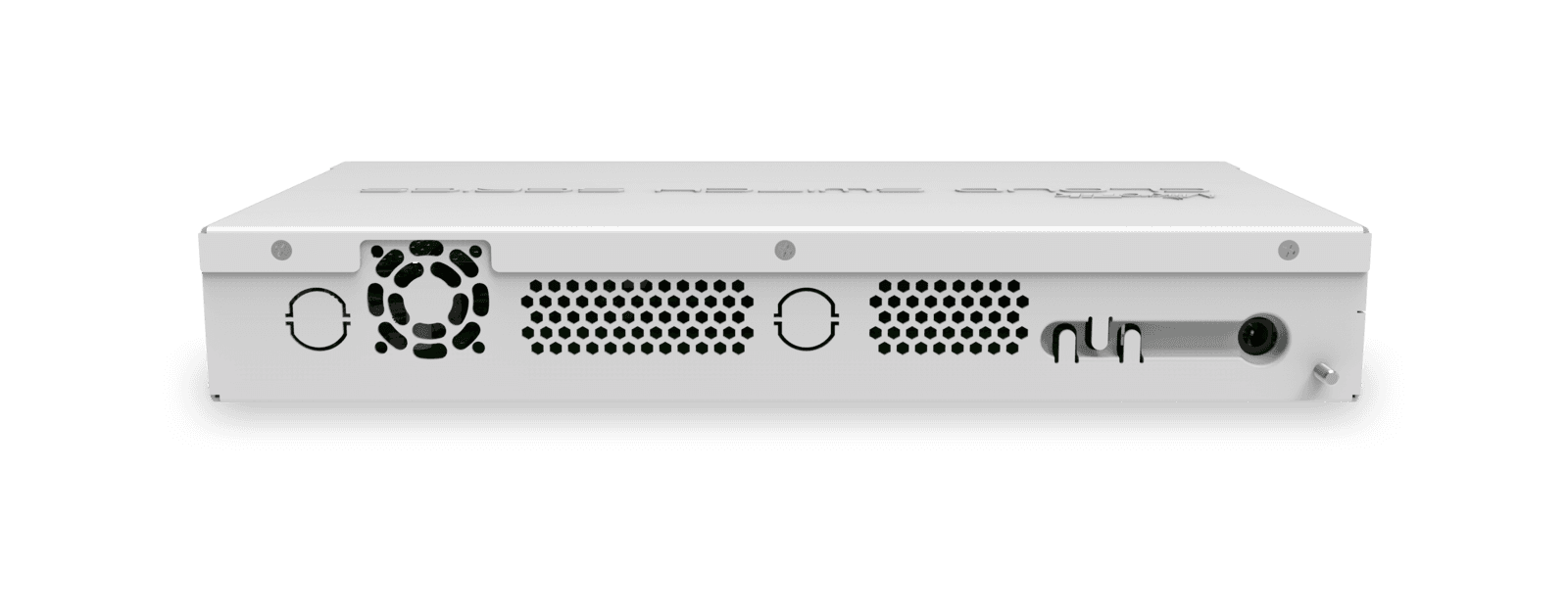

MikroTik CRS326-24G-2S+RM

24-port Gigabit switch with two 10G SFP+ cages for desktop or rack use.

  • 24 Gigabit Ethernet ports and two 10G SFP+ cages
  • Dual boot RouterOS or SwOS
  • Dual-core 98DX3236 CPU at 800 MHz, 512 MB RAM
  • Passive cooling, 10-30 V DC input or passive PoE-in
Product page

Technical details

Specifications

24 specification rows

ArchitectureARM 32bit
CPU98DX3236
CPU core count2
CPU nominal frequency800 MHz
Switch chip model98DX3236
Dimensions285 x 144 x 44 mm
RouterOS license5
Operating SystemRouterOS / SwitchOS
Size of RAM512 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-40°C to 60°C

Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage10-30 V
Max power consumption21 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage10-30 V

10/100/1000 Ethernet ports24

SFP+ ports2

Serial console portRJ45

CertificationCE, EAC, ROHS
IPIP20
