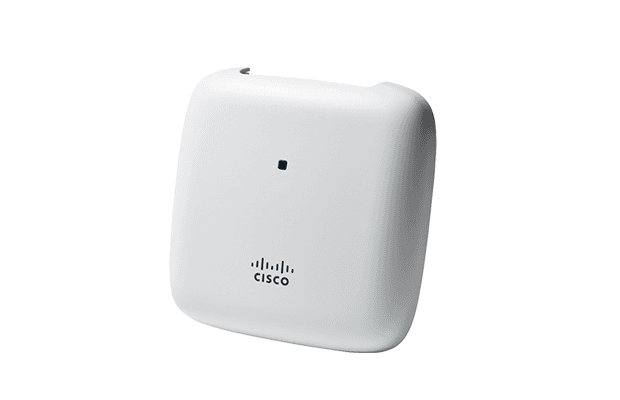

Cisco Business CBW240AC-S image 2
Wireless Access Points
Cisco Business CBW240AC-S
4x4 MU-MIMO 802.11ac Wave 2 ceiling access point with two Gigabit PoE ports.
- 802.11ac Wave 2 with 4x4 MU-MIMO, up to 1733 Mbit/s on 5 GHz
- 2 x Gigabit Ethernet ports with 802.3af/at PoE-in
- Up to 400 clients per access point, 50 access points per network
- Managed with the Cisco Business Mobile app; mesh supported
Technical details
Specifications
21 specification rows
StandardIEEE 802.11ac Wave 2
MIMO4x4 downlink MU-MIMO, four spatial streams
5 GHz data rateUp to 1733 Mbit/s
Channels20, 40 and 80 MHz; DFS
2.4 GHz antennaInternal omnidirectional, peak gain 4 dBi
5 GHz antennaInternal omnidirectional, peak gain 5 dBi
Transmit power2.4 GHz up to 20 dBm; 5 GHz up to 23 dBm
SecurityWPA2, 802.1X, RADIUS, 802.11r and 802.11i
Max clients200 per radio, 400 per access point, 1000 per system
Max access points50 (recommended up to 25)
Ethernet2 x Gigabit Ethernet (10/100/1000BASE-T), PoE
ConsoleRJ-45 console port (not functional)
USBUSB 2.0 (not functional)
Memory1 GB DRAM, 256 MB flash
Dimensions (W x L x H)7 x 7 x 1.5 in (without mounting brackets)
Weight0.43 kg (0.94 lb)
Power802.3af/at PoE-in; 13.2 W power draw
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature-30°C to 70°C (-22°F to 158°F)
Operating humidity10% to 90%, noncondensing
WarrantyCisco Business limited lifetime hardware warranty
