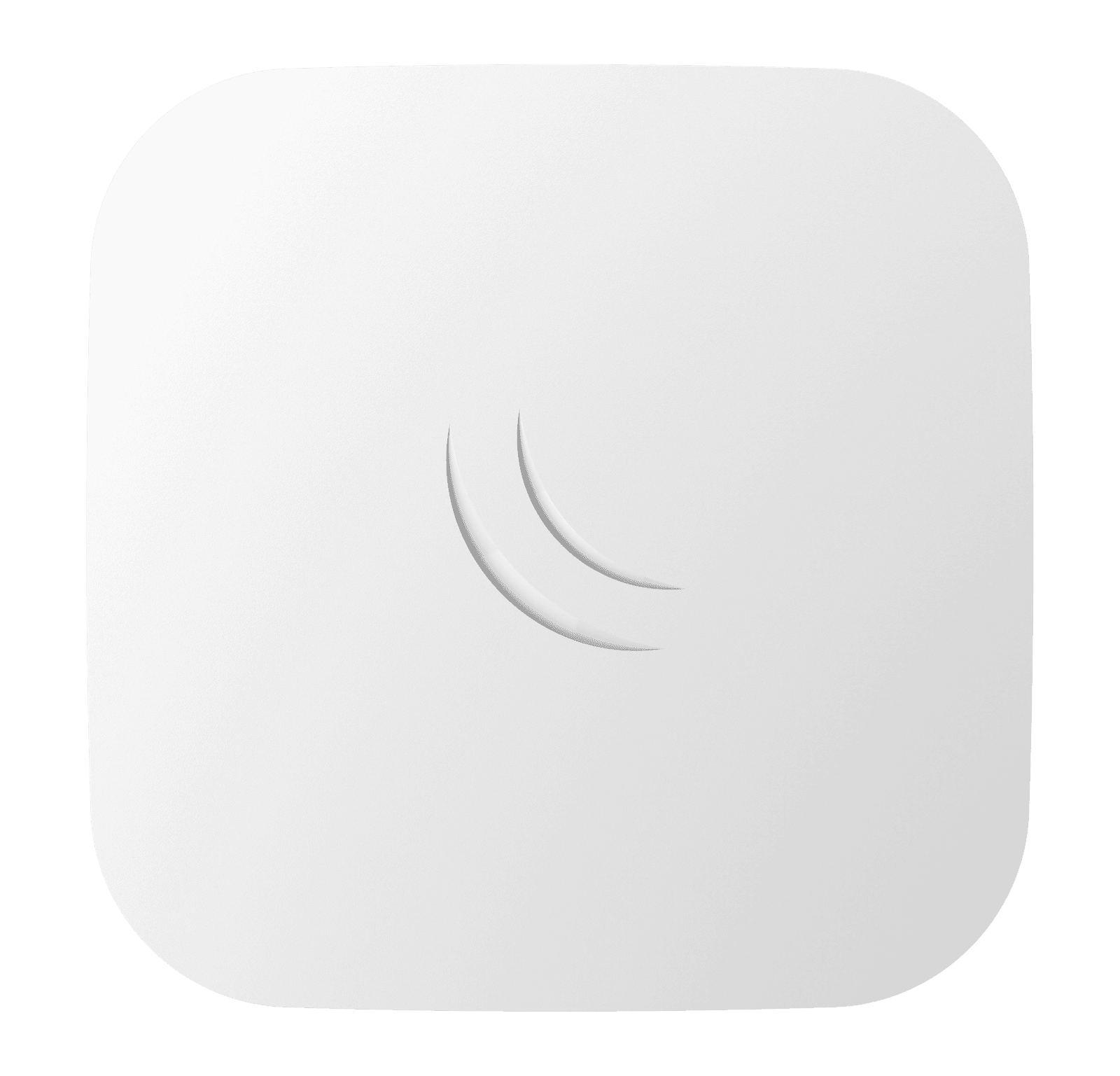

MikroTik cAP ac
Dual-band 802.11ac ceiling access point with two Gigabit ports and PoE-out.
- Dual-band 802.11ac, AC1200: 300 Mbit/s on 2.4 GHz and 867 Mbit/s on 5 GHz
- Two Gigabit Ethernet ports, one with passive PoE-out
- Quad-core IPQ-4018 CPU, 128 MB RAM

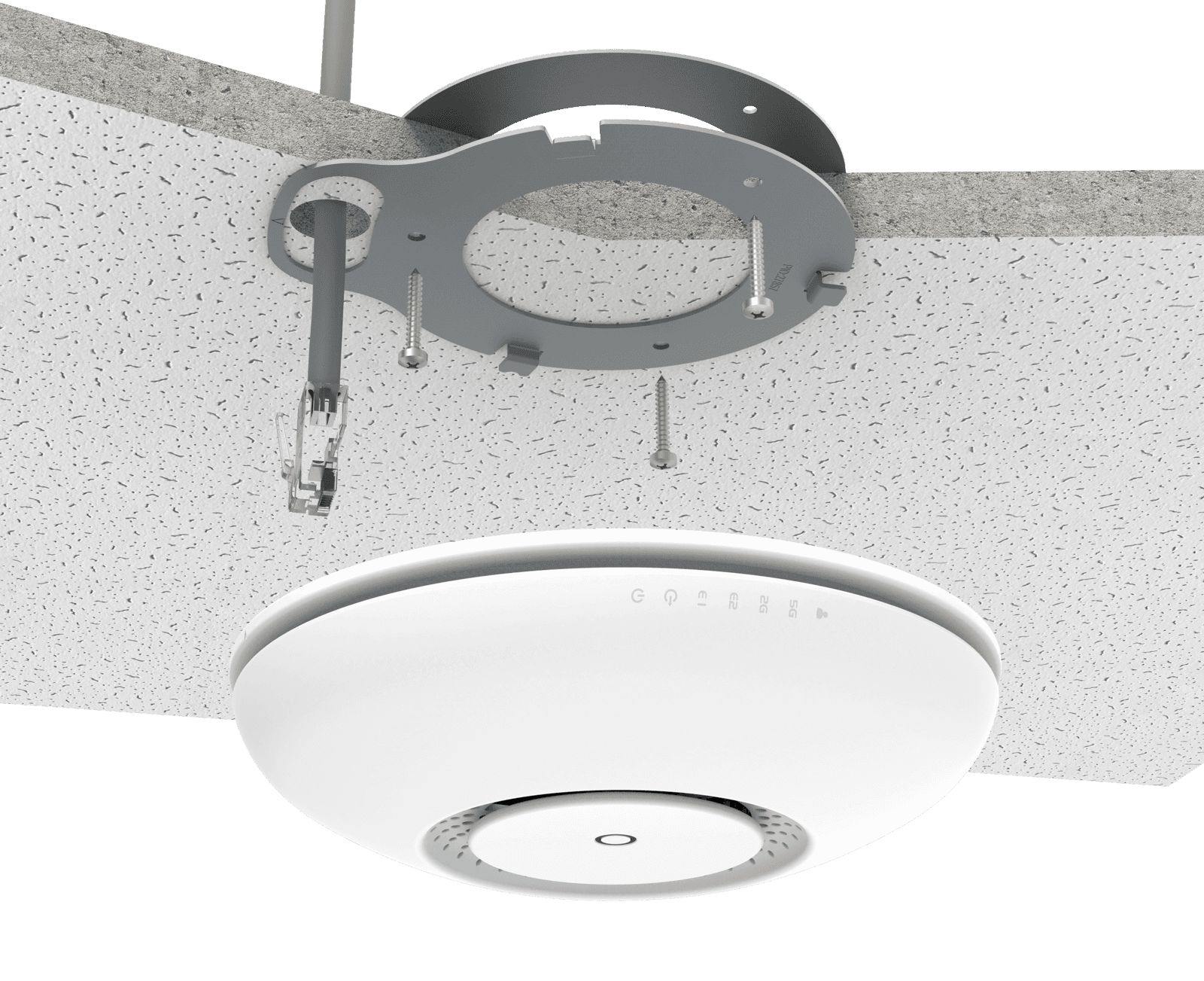

- 802.3af/at PoE-in, ceiling or wall mounting
Technical details
Specifications
42 specification rows
ArchitectureARM 32bit
CPUIPQ-4018
CPU core count4
CPU nominal frequency488-896 (auto) MHz
CPU Threads count4
Switch chip modelIPQ-4018
DimensionsRound case: ⌀ 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
RouterOS license4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 50°C
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz Number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2
Wireless 2.4 GHz chip modelIPQ-4018
Wireless 2.4 GHz generationWi-Fi 4
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2.5
Wireless 5 GHz chip modelIPQ-4018
Wireless 5 GHz generationWi-Fi 5
WiFi speedAC1200
10/100/1000 Ethernet ports2
Number of DC inputs1 (PoE-IN)
Max power consumption24 W
Max power consumption without attachments12 W
PoE in802.3af/at
Cooling typePassive
PoE in input Voltage17-57 V
PoE-out portsEther2
PoE outPassive PoE up to 57V
Low voltage PoE-Out current limit500 mA
High voltage PoE-Out current limit400 mA
Max total out (A)500 mA
CertificationCE, FCC, IC, EAC, ROHS
IP20
Mode buttonYes
