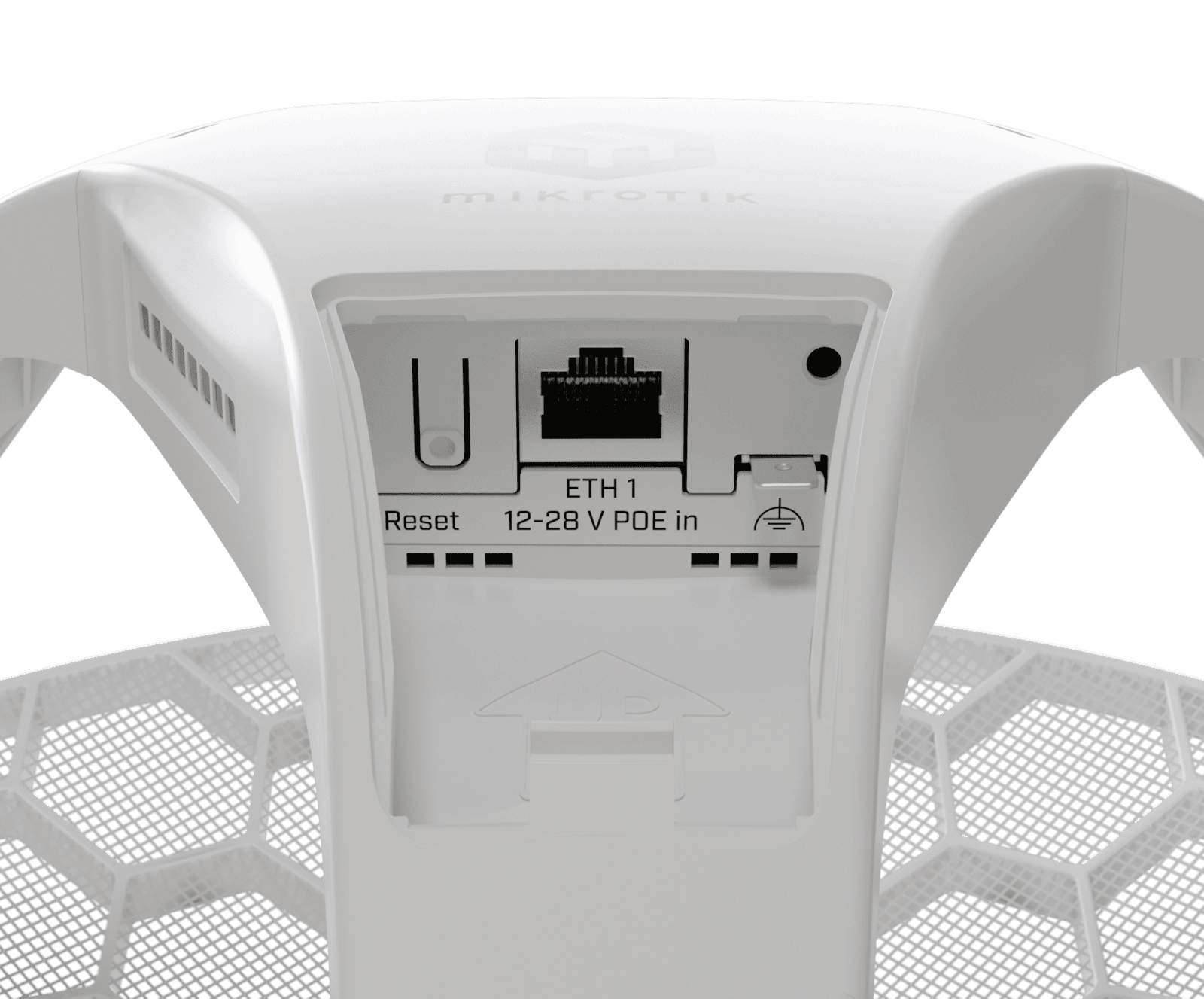

MikroTik LHG 5 ax image 1
Wireless Bridges
MikroTik LHG 5 ax
Wi-Fi 6 5 GHz CPE with a 24.5 dBi integrated dish and Gigabit Ethernet.
- 5 GHz 802.11ax, 1200 Mbit/s, two spatial streams
- 24.5 dBi integrated dual-polarisation grid antenna
- Dual-core IPQ-5010 CPU, 256 MB RAM, 128 MB NAND
- IP54 outdoor enclosure, passive PoE-in, Gigabit Ethernet
Technical details
Specifications
28 specification rows
Product codeLHG-5axD
ArchitectureARM 32bit
CPUIPQ-5010
CPU core count2
CPU nominal frequency800 MHz
CPU Threads count2
RouterOS license3
Operating SystemRouterOS v7
Size of RAM256 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Number of DC inputs1 (PoE-IN)
Max power consumption5 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage12-28 V
Wireless 5 GHz Max data rate1200 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac/ax
Antenna gain dBi for 5 GHz24.5
Wireless 5 GHz chip modelQCN-6102
Wireless 5 GHz generationWi-Fi 6
10/100/1000 Ethernet ports1
CPU temperature monitorYes
CertificationCE, FCC, IC, EAC, ROHS
IPIP54
