MikroTik SXTsq 5 ac image 1
Wireless Bridges

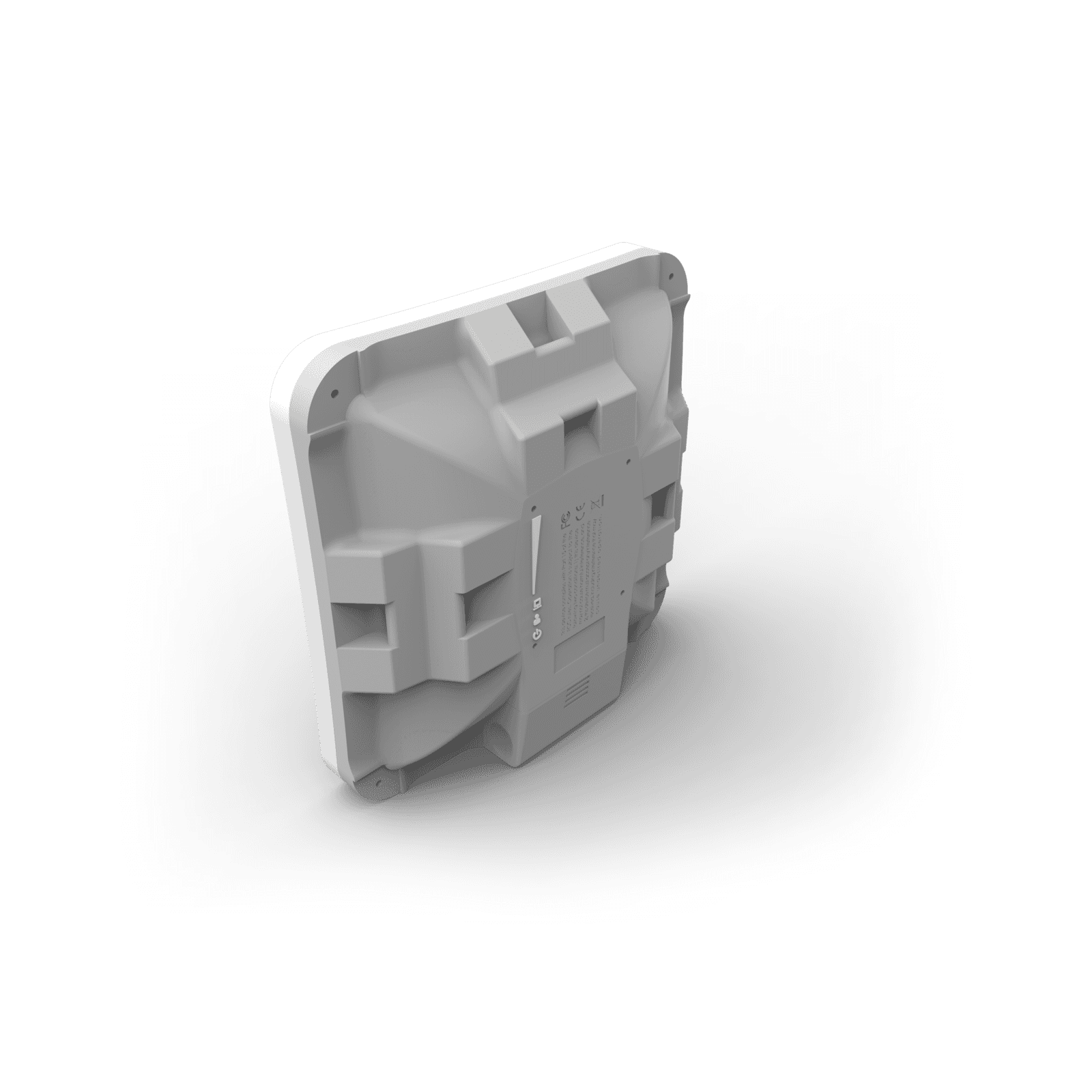

MikroTik SXTsq 5 ac
Compact 5 GHz CPE with a 16 dBi integrated antenna and Gigabit Ethernet.
- 5 GHz 802.11ac, 867 Mbit/s, two spatial chains
- 16 dBi integrated antenna
- Quad-core IPQ-4018 CPU, 256 MB RAM
- IP55 outdoor enclosure, passive PoE-in, Gigabit Ethernet
Technical details
Specifications
27 specification rows
ArchitectureARM 32bit
CPUIPQ-4018
CPU core count4
CPU nominal frequency488-896 (auto) MHz
CPU Threads count4
Dimensions129 x 129 x 34 mm
RouterOS license3
Operating SystemRouterOS
Size of RAM256 MB
Storage size16 MB
Storage typeFLASH
MTBFApproximately 100'000 hours at 25C
Tested ambient temperature-40°C to 70°C
Number of DC inputs1 (PoE-IN)
Max power consumption7 W
PoE inPassive PoE
Cooling typePassive
PoE in input Voltage10-28 V
Wireless 5 GHz Max data rate867 Mbit/s
Wireless 5 GHz Number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz16
Wireless 5 GHz chip modelIPQ-4018
Wireless 5 GHz generationWi-Fi 5
10/100/1000 Ethernet ports1
CertificationCE, FCC, IC, EAC, ROHS
IP55
